SeaQuest Air Source Cover Tool

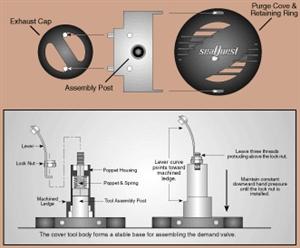

Air Source Cover Tool The SeaQuest® Air Source Cover Tool provides three functions related to the disassembly/assembly of the Air Source breathable inflator. The tabs on the slotted end of the tool index with the purge cover and the retaining ring simultaneously. The drive pins on the opposite side of the tool are used to remove the exhaust cap (see Figure #1). The assembly post, mounted in the center of the tool, is designed to hold the poppet and spring compressed while the lock nut is installed (see Figure #2). The tool body and assembly post are machined from aluminum and the drive pins are zinc plated steel. Complete instructions are packaged with the tool.
